Modelling CO₂ Capture processes in Aspen Plus using MEA, DEA and MDEA
Abstract
The volatilization of amine-based absorbents occurring in the CO₂ chemical absorption processes are not only has a detrimental impact on the atmospheric environment but also leads to increased costs to compensate for the loss of absorbents during process operation. Therefore, this report is focused on the CO₂ absorbability of amine solvents: Monoethanolamine (MEA), Diethanolamine (DEA) and Methyldiethanolamine (MDEA) by using a general-purpose simulation program, Aspen Plus V11. This study aims to provide insights into the effectiveness of these amines in CO₂ absorption processes, offering a comparative perspective that highlights their unique chemical and physical properties.
Introduction
Overview of CO₂ Capture Processes
Carbon dioxide (CO₂) emissions have been a major contributor to global climate change, making carbon capture technologies increasingly important. Among various CO₂ capture methods, amine-based chemical absorption has been widely used in industrial applications. This process involves capturing CO₂ from flue gases by using amine solvents, which chemically react with CO₂ to form stable intermediates that can later be regenerated to release pure CO₂.
The amine-based CO₂ absorption process was first introduced in the 1930s and has undergone continuous development to improve efficiency and reduce operational costs. While this method is highly effective in reducing CO₂ emissions, volatilization of amine solvents during the absorption process can lead to environmental concerns and increased operational costs due to solvent losses. Therefore, selecting the most efficient amine solvent is crucial for optimizing CO₂ capture performance while maintaining cost-effectiveness.
Importance of Amine-Based Absorption
Amines are organic compounds that contain a nitrogen atom with a lone pair of electrons, which makes them highly reactive with CO₂. The reaction between amines and CO₂ occurs in the presence of water, forming carbamate and bicarbonate intermediates, which facilitates efficient CO₂ capture.
Several factors influence the efficiency of amine-based CO₂ absorption, including:
•
Molecular structure of the amine (primary, secondary, or tertiary)
•
Solubility of the amine in water, which determines its concentration in the absorption process
•
Reaction kinetics, which affects the rate of CO₂ capture
•
Vapor pressure, which influences solvent losses and operational efficiency
Choosing the appropriate amine solvent based on these factors is essential for achieving high CO₂ removal efficiency while minimizing solvent loss and energy consumption during regeneration.
Objectives of the Project
This project aims to analyze and compare the CO₂ absorption efficiency of three different amine solvents Monoethanolamine (MEA), Diethanolamine (DEA), and Methyldiethanolamine (MDEA) using Aspen Plus V11 simulation software. The key objectives include:
1.
Modeling the CO₂ absorption process using Aspen Plus and simulating the performance of different amines.
2.
Comparing the effectiveness of MEA, DEA, and MDEA in CO₂ absorption based on their chemical and physical properties.
3.
Providing insights into solvent selection for industrial CO₂ capture applications, balancing efficiency, operational cost, and sustainability.
Background & Theory
Chemical Principles of CO₂ Absorption
CO₂ absorption using amine solvents is a well-established chemical process where CO₂ reacts with an aqueous amine solution to form stable compounds. This reaction typically follows these key steps:
1.
Amine Activation – The amine dissolves in water, increasing its reactivity with CO₂.
2.
CO₂ Absorption – CO₂ reacts with the amine to form carbamate or bicarbonate compounds, depending on the type of amine.
3.
Regeneration – The amine is heated in a separate unit, releasing CO₂ and regenerating the solvent for reuse.
The efficiency of this process is determined by the amine’s reactivity with CO₂, its solubility in water, and the energy required for regeneration.
Properties of Amine Solvents
Amines can be classified based on the number of organic groups attached to the nitrogen atom:
•
Primary amines (e.g., MEA) have one organic group.
•
Secondary amines (e.g., DEA) have two organic groups.
•
Tertiary amines (e.g., MDEA) have three organic groups.
Each type of amine has different properties that influence its effectiveness in CO₂ absorption.

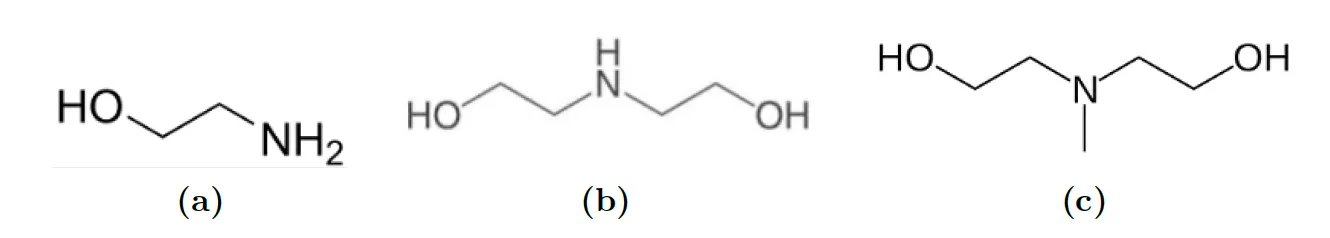

Fig 1. Molecular structure of (a) Monoethanolamine (MEA) (b) Diethanolamine (DEA) (c) Methyldiethanolamine (MDEA)
Monoethanolamine (MEA)
MEA is a primary amine known for its high CO₂ absorption capacity and fast reaction kinetics. It is widely used in CO₂ capture due to its strong reactivity with CO₂ and ability to remove nearly 99.9% of CO₂ from flue gas streams. However, MEA has a high heat of absorption, making regeneration energy-intensive. Additionally, it is prone to degradation and high solvent loss due to volatilization.
Diethanolamine (DEA)
DEA is a secondary amine with a moderate reaction rate compared to MEA. While it has lower reactivity, it exhibits better thermal stability and lower volatility, reducing solvent loss. However, DEA absorbs less CO₂ than MEA, leading to lower overall capture efficiency.
Methyldiethanolamine (MDEA)
MDEA is a tertiary amine that reacts with CO₂ more slowly than MEA and DEA. However, it has lower vapor pressure, making it less prone to solvent loss and reducing operational costs. MDEA also requires less energy for regeneration, making it suitable for large-scale CO₂ capture applications. Despite its energy advantages, MDEA is less efficient in immediate CO₂ absorption due to its slow reaction kinetics.
Process Chemistry & Reaction Mechanisms
The efficiency of CO₂ absorption depends on the specific reaction mechanisms involved:
•
MEA reacts directly with CO₂ to form carbamate compounds, which facilitates rapid CO₂ absorption but requires high energy input for regeneration.
•
DEA forms bicarbonate and carbamate intermediates, allowing for moderate CO₂ absorption and lower regeneration energy.
•
MDEA relies on a slower, equilibrium-driven process, where CO₂ absorption is controlled by the availability of free amine molecules in solution.
These reaction mechanisms directly impact the CO₂ removal efficiency, operating cost, and energy consumption of the absorption process. Selecting the right amine requires balancing absorption performance with long-term sustainability and economic feasibility.
Simulation Setup in Aspen Plus
Software & Tools Used
The simulation of CO₂ absorption was performed using Aspen Plus V11, a widely used process modeling software for chemical engineering applications. Aspen Plus allows for the detailed simulation of gas-liquid absorption processes and provides a platform to analyze and optimize chemical reaction kinetics, thermodynamics, and process efficiency.
Process Flow Diagram (PFD)
The CO₂ absorption process was modeled in Aspen Plus using an amine-based absorption column setup. The system includes:
•
Flue gas inlet stream containing CO₂, nitrogen (N₂), oxygen (O₂), and water (H₂O).
•
Absorber column (RadFrac model) where CO₂ absorption occurs.
•
Treated flue gas outlet stream (GASOUT) showing the reduced CO₂ content after the absorption process.
•
Amine solvent feed stream, which interacts with the flue gas to absorb CO₂.
The simulation design is based on industrial-scale amine absorption processes, reflecting realistic operating conditions used in CO₂ capture plants.
Key Assumptions and Parameters
The simulation was conducted under specific conditions to evaluate the effectiveness of three amine solvents (MEA, DEA, and MDEA). The key assumptions and parameters used in the model include:
•
Flue gas composition:
◦
CO₂: 17.44%
◦
N₂: 62.03%
◦
O₂: 18.80%
◦
H₂O: 1.73%
•
Amine solvents: Monoethanolamine (MEA), Diethanolamine (DEA), and Methyldiethanolamine (MDEA).
•
Process temperature and pressure: Maintained at standard conditions suitable for CO₂ absorption.
•
Chemical reaction mechanism: Assumed equilibrium-based CO₂ absorption behavior in the RadFrac column.
•
Solvent regeneration: Not explicitly modeled but considered in the analysis of energy efficiency.
Absorber Column Design (RadFrac Model)
The RadFrac column model in Aspen Plus was used to simulate the absorption of CO₂ in the amine solvents. This model is suitable for gas-liquid separation processes involving equilibrium reactions. The column was designed to:
•
Maximize CO₂ capture efficiency by optimizing solvent-to-gas ratio.
•
Compare the performance of different amines by analyzing CO₂ removal percentages.
•
Evaluate the concentration of CO₂ in the treated gas stream (GASOUT) to determine absorption effectiveness.
Methodology
Defining Input Conditions
The initial conditions for the simulation were set based on typical flue gas compositions from industrial processes. The feed gas composition and flow rates were defined to ensure realistic CO₂ capture conditions.
The amine solvents (MEA, DEA, and MDEA) were introduced in the liquid phase at specific flow rates to maintain an optimal gas-liquid contact ratio within the absorber column.
Setting Up Amine Properties
The key properties of each amine were defined in Aspen Plus to account for their different reactivity and absorption capacities:
•
MEA (Monoethanolamine): High CO₂ absorption rate but high regeneration energy requirement.
•
DEA (Diethanolamine): Moderate CO₂ absorption efficiency with better thermal stability.
•
MDEA (Methyldiethanolamine): Lower CO₂ absorption rate but higher energy efficiency due to lower regeneration requirements.
The solubility, vapor pressure, and reaction kinetics of each amine were incorporated into the simulation to reflect their real-world behavior in CO₂ absorption processes.
CO₂ Absorption Equations
The efficiency of CO₂ absorption was calculated using the following equation:
CO2 absorbed (%)=(CO2 in feed flue gasCO2 in feed flue gas−CO2 in exiting flue gas)×100
This formula was used to determine the percentage of CO₂ removed from the flue gas for each amine solvent.
Running Simulations for MEA, DEA, and MDEA
Each amine was tested under identical conditions in Aspen Plus to compare their CO₂ absorption performance. The output gas composition (GASOUT) was analyzed to assess the remaining CO₂ concentration.
•
MEA showed the highest CO₂ capture efficiency (99.99%), effectively removing nearly all CO₂ from the flue gas.
•
DEA exhibited moderate absorption efficiency (~53.77%), with a significant amount of CO₂ still present in the treated gas.
•
MDEA had the lowest absorption rate (~14.98%), but it required the least energy for solvent regeneration, making it suitable for large-scale applications.
The results provided a comparative evaluation of the three amines, highlighting trade-offs between absorption efficiency and operational cost.
Result & Analysis
Simulation Outputs
The simulation of the CO₂ capture process was conducted in Aspen Plus, comparing the performance of three different amines: Monoethanolamine (MEA), Diethanolamine (DEA), and Methyldiethanolamine (MDEA). The key output from the simulation was the CO₂ concentration in the treated gas stream (GASOUT), which determined the absorption efficiency of each amine solvent.
The simulation results were analyzed based on the percentage of CO₂ absorbed from the feed flue gas. The remaining CO₂ in the treated gas (GASOUT) was used to calculate the efficiency of each amine in capturing CO₂.
CO₂ Capture Efficiency of Different Amines
The efficiency of each amine in capturing CO₂ was evaluated using the mass flow of CO₂ in the flue gas before and after passing through the absorber column.
•
MEA demonstrated the highest CO₂ capture efficiency (~99.99%), removing almost all CO₂ from the flue gas stream.
•
DEA showed moderate absorption performance, capturing approximately 53.78% of the CO₂.
•
MDEA had the lowest CO₂ absorption rate (~14.98%), meaning a large proportion of CO₂ remained in the treated gas.
These findings highlight that while MEA is the most effective at capturing CO₂, it also requires the most energy for regeneration, whereas MDEA, despite lower efficiency, has advantages in terms of operational cost and solvent stability.
Comparative Table of CO₂ Removal
The results of the simulation are summarized in the tables below, showing the composition of the treated flue gas for each amine:
Table 1: Composition of Gas Streams Before and After Absorption
Component | Flue Gas (%) | Gas Out (%) - MEA | Gas Out (%) - DEA | Gas Out (%) - MDEA |
Amine | 0 | 0.021 | 7.017 | 0.0005 |
H₂O | 1.727 | 5.0416 | 0.00003 | 4.290 |
CO₂ | 17.444 | 0.003 | 8.435 | 14.839 |
N₂ | 62.026 | 72.850 | 64.880 | 62.058 |
O₂ | 18.803 | 22.084 | 19.668 | 18.812 |
Table 2: CO₂ Absorption Efficiency for Each Amine
Amine | CO₂ in Flue Gas (kg/s) | CO₂ in Treated Gas (kg/s) | CO₂ Absorbed (%) |
MEA | 0.01328 | 1.67694 ×10⁻⁶ | 99.99% |
DEA | 0.01328 | 0.00614 | 53.78% |
MDEA | 0.01328 | 0.01129 | 14.98% |
These results confirm that MEA is the most efficient in removing CO₂, followed by DEA and MDEA.
Factors Affecting Absorption Efficiency
The effectiveness of CO₂ absorption in different amine solvents is influenced by several factors:
1.
Molecular Structure: Primary amines (MEA) have a stronger affinity for CO₂, while secondary (DEA) and tertiary (MDEA) amines exhibit steric hindrance, reducing their absorption efficiency.
2.
Solubility in Water: Higher solubility enhances the concentration of the amine available for reaction, improving absorption rates.
3.
Reaction Kinetics: MEA has the fastest reaction kinetics, making it the most effective for CO₂ absorption, whereas MDEA reacts more slowly, resulting in lower absorption rates.
4.
Vapor Pressure: Lower vapor pressure reduces solvent losses due to evaporation, improving long-term operational efficiency.
These factors determine the trade-offs between CO₂ removal efficiency and operational sustainability, influencing the choice of amine for industrial applications.
Discussion
Influence of Molecular Structure on Absorption Performance
The structure of the amine molecule plays a crucial role in its CO₂ absorption efficiency.
•
MEA (Primary Amine): Due to its direct nitrogen-hydrogen bond, MEA has the highest reactivity with CO₂, resulting in rapid absorption.
•
DEA (Secondary Amine): The presence of two organic groups around the nitrogen reduces its reactivity compared to MEA.
•
MDEA (Tertiary Amine): The additional functional groups cause steric hindrance, slowing the reaction rate with CO₂.
The molecular structure determines the reaction speed, efficiency, and suitability of each amine for large-scale CO₂ capture applications.
Solubility & Reaction Kinetics
Solubility in water and reaction kinetics are key factors influencing CO₂ absorption.
•
MEA has high solubility and reacts quickly with CO₂, making it highly effective for immediate capture.
•
DEA has moderate solubility and slower reaction kinetics, leading to lower CO₂ removal efficiency.
•
MDEA, despite its lower reaction rate, has high CO₂ loading capacity, meaning it can store more CO₂ over time, making it more suitable for long-duration applications.
While MEA is preferred for fast CO₂ removal, its high reaction rate also means it requires more frequent regeneration, increasing energy consumption.
Energy Considerations in Amine Regeneration
The regeneration of amine solvents is a major factor in the economic feasibility of CO₂ capture.
•
MEA has an exothermic reaction, meaning more energy is required to break the CO₂-amine bond during regeneration.
•
DEA requires less regeneration energy than MEA, making it a more energy-efficient option.
•
MDEA has the lowest heat of absorption, which minimizes the energy required for regeneration, making it more suitable for large-scale applications where energy efficiency is a priority.
Thus, while MEA provides superior CO₂ removal, it has higher operational costs due to energy-intensive solvent regeneration. MDEA, although less effective in CO₂ absorption, offers greater cost-effectiveness over long-term operation.
Industrial Implications of the Findings
The selection of an amine solvent for industrial CO₂ capture depends on balancing efficiency, cost, and sustainability.
•
MEA is ideal for processes requiring high CO₂ removal efficiency, but its high energy consumption makes it costly in the long run.
•
DEA offers a balance between efficiency and energy use, making it a practical choice for moderate CO₂ removal applications.
•
MDEA is preferred for large-scale CO₂ capture due to its low regeneration energy requirements, making it more sustainable and cost-effective.
Industries must carefully evaluate process needs to choose the optimal amine for CO₂ capture, considering factors such as plant size, energy availability, and economic feasibility.
Conclusion
This study analyzed the effectiveness of three amine solvents—Monoethanolamine (MEA), Diethanolamine (DEA), and Methyldiethanolamine (MDEA)—for CO₂ capture using Aspen Plus V11 simulations. The findings highlight key differences in absorption efficiency, reaction kinetics, and energy consumption, all of which are critical factors for selecting the optimal amine solvent in industrial applications.
Summary of Key Findings
•
MEA exhibited the highest CO₂ absorption efficiency (99.99%), making it the most effective solvent for immediate CO₂ capture. However, its high heat of absorption leads to higher regeneration energy costs and potential solvent degradation.
•
DEA showed moderate CO₂ removal efficiency (~53.78%) with lower regeneration energy requirements than MEA. This makes DEA a viable option for balancing performance and energy consumption in CO₂ capture processes.
•
MDEA had the lowest CO₂ absorption efficiency (~14.98%), but its low vapor pressure and reduced energy demand for regeneration make it a cost-effective choice for large-scale, long-term applications.
These results emphasize the trade-off between CO₂ capture efficiency and energy consumption, requiring industries to carefully evaluate their priorities—whether to maximize absorption performance or minimize operational costs.
Implications for Industrial Applications
The selection of an amine solvent depends on multiple factors, including:
1.
CO₂ concentration in the flue gas: Higher concentrations may require more reactive amines like MEA.
2.
Energy availability and cost considerations: MDEA is advantageous where energy efficiency is a priority.
3.
Long-term operational stability: Solvent degradation and losses must be considered when selecting an amine.
Industries should consider process integration strategies, such as amine blending, to optimize absorption performance while reducing energy costs. A mixture of MDEA and MEA or DEA can improve absorption efficiency while maintaining lower energy consumption compared to pure MEA systems.
Future Research Directions
While this study provides valuable insights, several areas require further research to enhance the effectiveness of CO₂ capture technologies:
•
Optimization of Amine Blends: Investigating mixtures of MEA, DEA, and MDEA to find the most efficient and energy-saving combinations.
•
Alternative Solvent Development: Exploring new solvents with better absorption capacity and lower regeneration energy demands.
•
Process Intensification: Examining advanced absorber column designs and hybrid separation techniques to improve CO₂ removal efficiency.
•
Long-Term Stability and Environmental Impact: Assessing amine degradation rates, emissions, and solvent recycling strategies to improve sustainability.
By addressing these areas, future studies can contribute to the development of more efficient, cost-effective, and environmentally sustainable CO₂ capture technologies.
