Assessment of surrounding factors for the potential manufacture of Boron Carbide body armour for military personnel
Executive Summary
Purpose of the Report
To assess the potential for manufacturing boron carbide body armor for military use by Rennib Advanced Ceramics, analyzing its applications, market trends, and production processes.
Key Insights
•
Boron carbide offers superior ballistic protection due to its high hardness, low density, and compressive strength.
•
The global market for ceramic body armor is projected to double by 2030, with North America leading demand.
•
Major challenges include the high cost of boron carbide processing and limitations in multi-hit performance.
•
Alternatives and innovations, such as nanocomposites and new assembly techniques, provide future growth opportunities.
Recommendations
•
Proceed with boron carbide manufacturing due to its strong market potential.
•
Invest in R&D to lower production costs and improve product performance.
•
Explore alternative materials and innovative designs to enhance market competitiveness.
Content
Market Overview & Competitive Landscape (Industry & Business Context)
1. Global Ceramic Armour Market
The ceramic armour industry is experiencing rapid growth due to increasing military modernization and rising defense budgets worldwide. Key materials in this sector include boron carbide (B₄C), silicon carbide (SiC), alumina (Al₂O₃), and ceramic-metal composites (CMCs), with boron carbide standing out for its superior hardness and low density.
•
Market Growth: The global ceramic armour market was valued at USD 2.4 billion in 2022 and is projected to double to USD 4.94 billion by 2030, with a Compound Annual Growth Rate (CAGR) of 8.9%.
•
Regional Demand:
◦
North America leads the market with a 37.5% market share, driven by U.S. firearm policies and military expenditures.
◦
Europe & Asia-Pacific are growing markets, with China, Germany, and India seeing 9% annual growth, mainly due to military modernization.

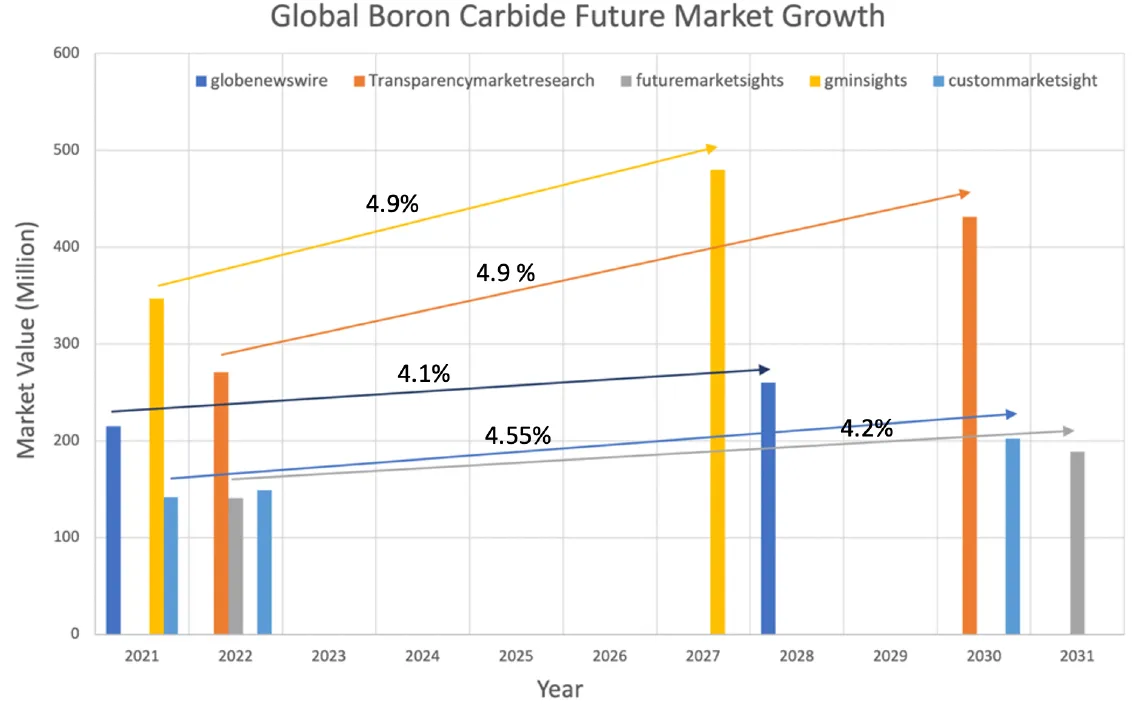

Figure 2: Global Boron Carbide market value growth from 2021 to 2031 from five market research website reports summaries and Compound Annual Growth Rate (CAGR)
2. Global Boron Carbide & Body Armour Market
The boron carbide market is projected to grow at a 4-5% CAGR from 2021 to 2031, independent of specific regions or companies. The body armour sector, particularly bullet-resistant vests, dominates 78% of the vest market, with Level III protection plates making up 25-26% of sales.
Key Players in the Market:
•
3M (Ceradyne)
•
CoorsTek
•
BAE Systems (UK)
•
Saint-Gobain (France)
•
ArmorWorks (USA)
•
Advanced Ceramics Materials (UK)
Consumer demand is influenced by law enforcement policies, government defense budgets, and firearm laws, with China and the USA driving market expansion.
Price Competitiveness:
•
Boron carbide plates are 3-6 times more expensive than other materials like silicon carbide and UHMWPE.
•
The high cost of production and limited supply slow down mass adoption, but ongoing material advancements could improve cost efficiency.
Technical Analysis & Innovation (Material Science & Engineering Perspective)
1. Material Selection & Performance Comparison
Boron carbide is favored in body armour manufacturing due to its exceptional hardness, lightweight properties, and resistance to extreme environments. However, it faces competition from silicon carbide and alumina, which have distinct trade-offs in cost, performance, and multi-hit durability.
Material Comparison
Property | Alumina (Al₂O₃) | Silicon Carbide (SiC) | Boron Carbide (B₄C) |
Density (g/cm³) | 3.42 - 3.9 | 3.16 | 2.5 - 2.6 |
Hardness (HV1) | 860 - 1600 | 2300 - 2600 | 2400 - 3100 |
Multi-hit Performance | High | Medium | Low |
Cost | Low | Medium | High |
•
Alumina is widely used due to its affordability and multi-hit performance, though it is significantly heavier.
•
Silicon carbide provides better impact resistance against tungsten carbide bullets but is prone to oxidation at high temperatures.
•
Boron carbide is lighter and harder than both but suffers from brittleness and multi-hit weaknesses.
Figure 1: X-Ray of ”Dragon Skin” armour, demonstrating the overlapping plate proposal
currently in development
2. Processing & Manufacturing Advancements
Due to its brittle nature, boron carbide requires advanced sintering processes for high-performance armour applications. Key processing methods include:
1.
Hot Pressing:
•
Achieves 99.7% theoretical density.
•
Requires 2100°C and 34.4 MPa pressure.
•
Produces fully densified boron carbide plates.
2.
Hot Isostatic Pressing (HIP):
•
Uses 160 MPa pressure at 1850°C.
•
Enhances porosity reduction and mechanical durability.
•
Improves bullet resistance through refined microstructure engineering.
3.
Hybrid Composite Solutions:
•
Graphene Composites: Increases impact dissipation and crack resistance.
•
Carbon Nanotube Weaves: Enhances flexibility without compromising strength.
•
Silicon-Doped Boron Carbide: Reduces phase transformation by 30%, improving multi-strike performance.
4.
Future Innovations:
•
Self-healing ceramic armour (using polymer-infused ceramics for impact absorption).
•
Modular armour designs (e.g., hexagonal boron carbide plates for increased flexibility).
•
Nanostructured armour (blending boron carbide with high-performance polyethylene composites).
These innovations aim to mitigate the weaknesses of boron carbide, particularly in multi-hit performance and cost efficiency, ensuring it remains a leading material for next-generation military armour.
Manufacturing & Future Opportunities (Industry Application & Feasibility)
1. Manufacturing Processes & Challenges
The production of boron carbide body armour involves several key steps, from raw material synthesis to final sintering and finishing. Due to its brittle nature, optimizing processing techniques is crucial to ensuring durability, impact resistance, and cost-effectiveness.
Key Manufacturing Techniques:
•
Boron Carbide Powder Preparation:
◦
Carbothermic Reduction: Converts boric acid (B₂O₃) with carbon at 2473-2773 K into boron carbide powder.
◦
Magnesiothermic Reduction: Uses magnesium as a reducing agent, followed by acid leaching for impurity removal.
•
Sintering Techniques:
◦
Hot Pressing (HP): Most widely used; applies high temperature (2100°C) and pressure (30-50 MPa) for full densification.
◦
Hot Isostatic Pressing (HIP): Uses high pressure (100-300 MPa) at lower temperatures (1700°C) for a uniform microstructure.
◦
Post-HIP Processing: Further improves density, mechanical properties, and crack resistance.
•
Composite Material Integration:
◦
Combining boron carbide with graphene, carbon nanotubes, or polymeric reinforcements for enhanced flexibility and impact resistance.
2. Feasibility & Industry Applications
Boron carbide is an advanced but expensive material, requiring careful cost optimization and process improvements to expand its commercial viability.
Current Applications:
•
Military & Defense: Primary market, used in body armour, vehicle armour, and explosive-resistant suits.
•
Law Enforcement & Security: High-end personal protective gear for police and security forces.
•
Aerospace & Space Exploration: Lightweight radiation shielding and impact-resistant components.
•
Industrial Wear Protection: Used in nuclear shielding, cutting tools, and ballistic panels.
Future Opportunities:
1.
Multi-Hit Resistant Armour:
•
Hexagonal Boron Carbide Plates for improved multi-hit durability.
•
Layered Hybrid Composites combining ceramics with ultra-tough polymers.
2.
Lightweight & Flexible Protection:
•
Boron Carbide Nanocomposites for wearable soft armour.
•
Shear-Thickening Fluids (STFs) that harden upon impact.
3.
Cost Reduction Strategies:
•
Alternative Sintering Methods (e.g., additive manufacturing or cold sintering).
•
Sustainable Boron Carbide Sourcing (leveraging new mines in Türkiye).
4.
Automated Manufacturing:
•
AI-driven quality control and precision manufacturing for higher efficiency and lower waste.
The feasibility of boron carbide’s wider adoption depends on cost reductions, improved processing methods, and enhanced multi-hit performance.
Conclusion & Personal Contribution (Your Role & Key Takeaways)
1. Key Takeaways from the Research
This analysis highlights the increasing demand for boron carbide body armour, driven by global defense modernization, material innovations, and market expansion. Despite processing challenges, new manufacturing techniques and hybrid materials are set to enhance boron carbide’s performance and affordability.
Major insights include:
•
Market Growth: The global ceramic armour market will double by 2030.
•
Material Advantages: Boron carbide offers high hardness and lightweight benefits but requires enhanced multi-hit resistance.
•
Technical Innovations: Emerging solutions include graphene composites, shear-thickening fluids, and modular plate designs.
•
Feasibility Challenges: High manufacturing costs remain a barrier to widespread adoption, but new cost-cutting strategies show promise.
2. My Role & Contributions
As a materials engineer, my contributions to this study involved:
•
Material Performance Analysis: Evaluating mechanical properties and limitations of boron carbide.
•
Market & Competitor Research: Identifying industry leaders, emerging trends, and feasibility constraints.
•
Processing & Manufacturing Study: Investigating advanced sintering techniques and their impact on armour quality.
•
Innovation & Future Solutions: Exploring hybrid composites, nanomaterials, and alternative ceramic processing methods.
This research has strengthened my expertise in materials engineering, particularly in ceramic processing, impact resistance, and market feasibility studies. My analytical and problem-solving skills have been enhanced, preparing me for future work in advanced materials development, defense applications, and sustainable engineering solutions.
3. Final Thoughts
Boron carbide body armour remains a critical component in modern defense, with new material innovations shaping its future potential. By optimizing processing techniques and integrating advanced composites, the industry can address cost challenges, enhance multi-hit resistance, and drive wider adoption.
This project has given me deeper insights into the intersection of materials science, market economics, and engineering feasibility, reinforcing my commitment to pioneering sustainable and high-performance material solutions.
